Data Masking with GitHub Actions Part 3 - Data Classification and Global Masking
Bytebase is a database DevSecOps platform designed for developers, security, DBA, and platform engineering teams. While it offers an intuitive GUI for managing database schema changes and access control, some teams may want to integrate Bytebase into their existing DevOps platforms using the Bytebase API.
In the previous tutorial, you learned how to customize both the masking algorithm and semantic types. In this tutorial, we will explore how to use data classification and global masking policy.
This is Part 3 of our tutorial series on implementing automated database masking using GitHub Actions:
- Part 1: Column Masking
- Part 2: Masking Algorithm
- Part 3: Data Classification and Global Masking (this one)
- Part 4: Data Export with Masking (TBD)
Overview
In this tutorial, you'll learn how to automate data classification and global masking policy using GitHub Actions and the Bytebase API. This integration allows you to:
- Manage data classification and global masking policy as code
- Automatically apply masking policies when PRs are merged
The complete code for this tutorial is available at: database-security-github-actions-example
This tutorial skips the setup part, if you haven't set up the Bytebase and GitHub Action, please follow Setup Instructions section in the previous tutorial.
Data Classification
In Bytebase Console
Follow Data Classification.
In GitHub Workflow
Find the step Apply classification, which will apply the classification to the database via API. All the classifications should be defined in one file in the root directory as masking/classification.json. The code it calls Bytebase API is as follows:
response=$(curl -s -w "\n%{http_code}" --request PATCH "${BYTEBASE_API_URL}/settings/bb.workspace.classification" \
--header "Authorization: Bearer ${BYTEBASE_TOKEN}" \
--header "Content-Type: application/json" \

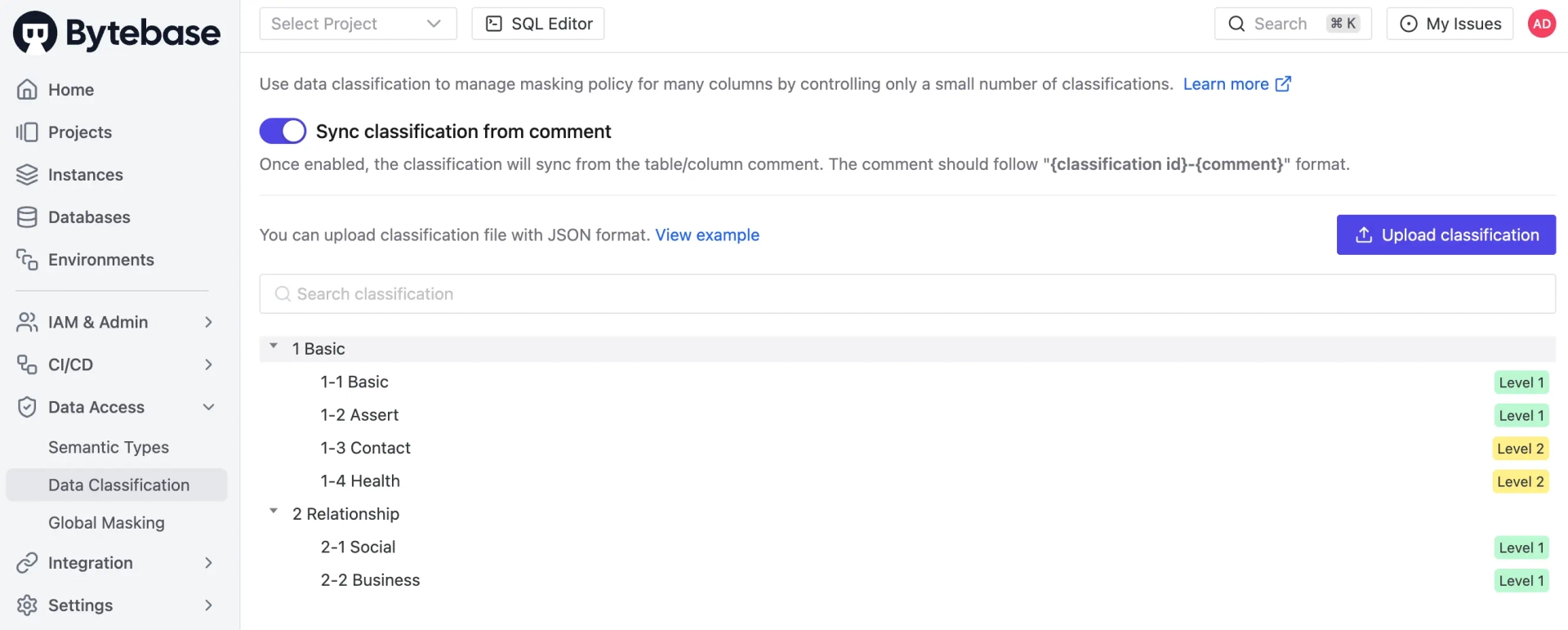

--data @"$CHANGED_FILE")By changing file masking/classification.json, creating a PR and merging, you can apply the classification to the database. Go to Bytebase console, click Data Access > Data Classification, go to Classification page, you can see the classification is applied to the database.
Global Masking Rule
In Bytebase Console
Follow Global Masking Rule.
In GitHub Workflow
Find the step Apply global masking rule, which will apply the global masking rule to the database via API. All the global masking rules should be defined in one file in the root directory as masking/global-masking-rule.json. The code it calls Bytebase API is as follows:
response=$(curl -s -w "\n%{http_code}" --request PATCH "${BYTEBASE_API_URL}/settings/bb.workspace.global_masking_rule?allow_missing=true&update_mask=payload" \
--header "Authorization: Bearer ${BYTEBASE_TOKEN}" \
--header "Content-Type: application/json" \
--data @"$CHANGED_FILE")By changing file masking/global-masking-rule.json, creating a PR and merge, you can apply the global masking rule to the database. Go to Bytebase console, click Data Access > Data Masking, go to Global Masking Rule page, you can see the global masking rule is applied to the database.
Summary
Through out this tutorial series, you have learned how to automate database masking policies, customize both the masking algorithm and semantic types, and use data classification and global masking policy using GitHub Actions and Bytebase API.
