Core Concepts

Workspace#

The entire Bytebase instance runs a single workspace. Most of the time, the Workspace concept is transparent to the user since there is only one per Bytebase instance. We mention here because it's a common concept among SaaS products, and in Bytebase, the term Workspace is interchangeable with Bytebase instance. We do NOT plan to support multiple workspaces in Bytebase in the foreseeable future. You can run multiple Bytebase instances to achieve the similar result.

User#

A user in the Bytebase workspace is defined as a member. member models after a subject performing the operation. Most of the time, user corresponds to a human being. Bytebase also has a special robot user named "Bytebase" (ID=1) which conducts automatic operations.

Internally, Bytebase uses term Principal instead of User because former is more accurate to describe both human user and robot user.

User Group#

User groupor Group is a collection of Users that are organized together to simplify the management of roles and permissions.

Admins can create user groups and assign Users to them at the Workspace level. Admins,DBAs and Project Owners can then assign these User Groups to Roles at the Project level.

Role#

See Roles and Permissions.

Environment#

Environment models after various environments in the development pipeline such as test, staging, prod. Most of the time, there is a 1:1 mapping between Environment and the real environment.

Most of the time, Admins and DBAs work with the Environment.

Database Instance#

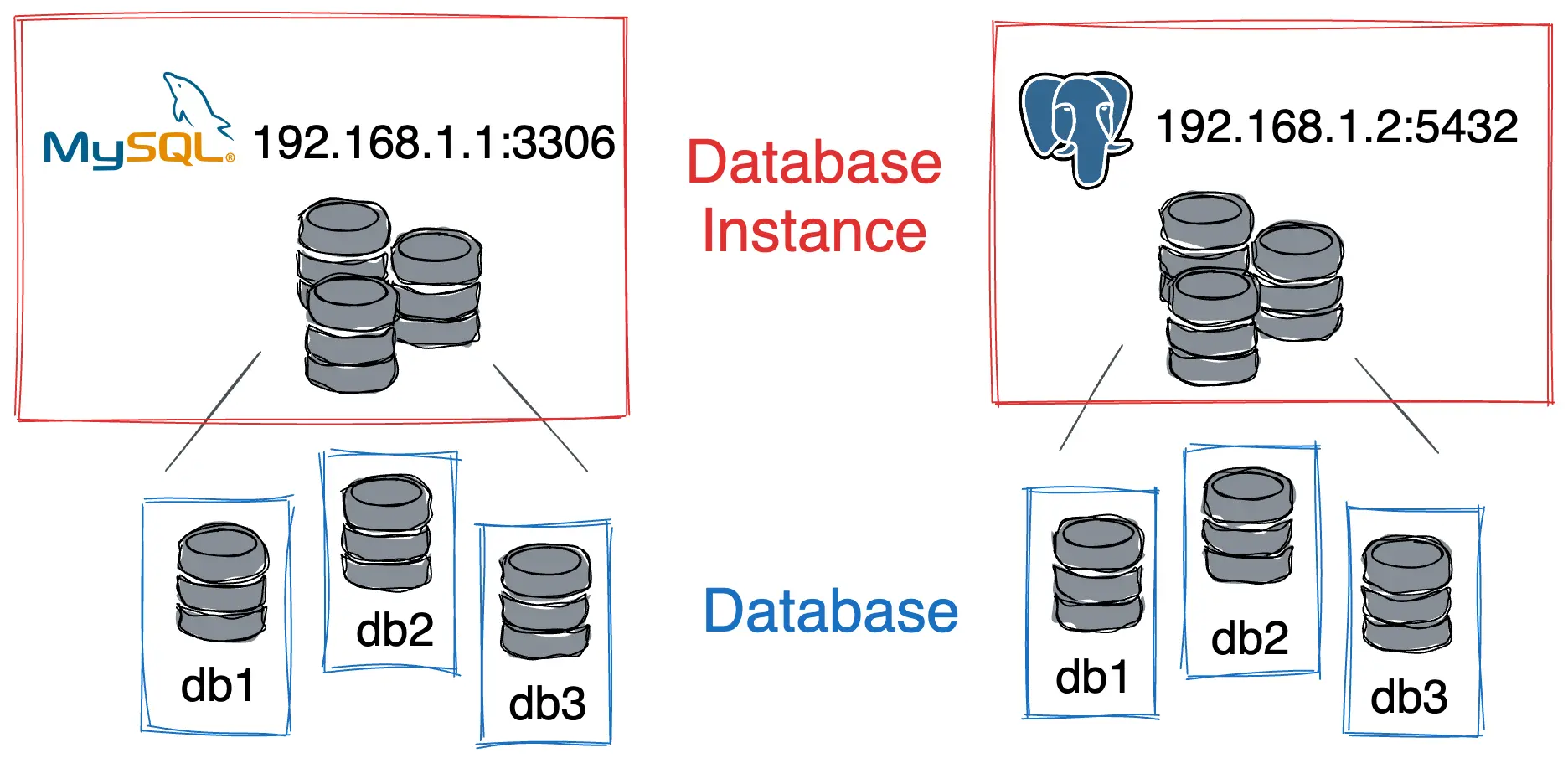

Bytebase is charged based on the number of database instances. If you have 1 instance containing hundreds of databases, it will be counted as 1. The below graph has 2 database instances, 1 for MySQL and 1 for PostgreSQL. Each instance contains 3 databases. You can manage all instances in Bytebase while purchase a subset of instance licenses.

Database Instance or simply Instance models after a single database server accessed via a host:port address or a primary/replica cluster. A typical database instance could be your on-premises MySQL instance, a PostgreSQL cluster, an AWS RDS instance etc. Each Database Instance belongs to an Environment. A Database Instance can contain multiple Databases.

Most of the time, Admins and DBAs work with the Database Instance.

Database#

Database refers to a single database from a Database Instance. A database is the one created by 'CREATE DATABASE xxx'. A database always belongs to a single Project.

Most of the time, Developers and DBAs work with the Database.

Database Group#

A list of databases usually having the same schema structure. Examples like per-tenant databases, and partitioned databases. Bytebase can batch change Database Group consistently.

Project#

Project is a logic unit to model a team effort. It's similar to the project concept in other dev tools such as Jira, GitLab. Project is the container to group logically related Databases, Issues and Users together. In Bytebase, A Database or an Issue always belongs to a single Project. Project is also the peering entity with the VCS repository to setup GitOps workflow.

Most of the time, Developers work with the Project.

Issue#

Issue drives the database change workflow such as Database Creation, DDL and DML. It's similar to the issue concept in other issue management tools.

In Bytebase, Issue is optimized for database domain. An Issue always belongs to a Project. A single Issue is only dealing with a particular Database Instance (e.g. creating a database on a database instance). Except for creating database issue, most other issues are also associated with an existing Database (e.g. altering a table on a database).

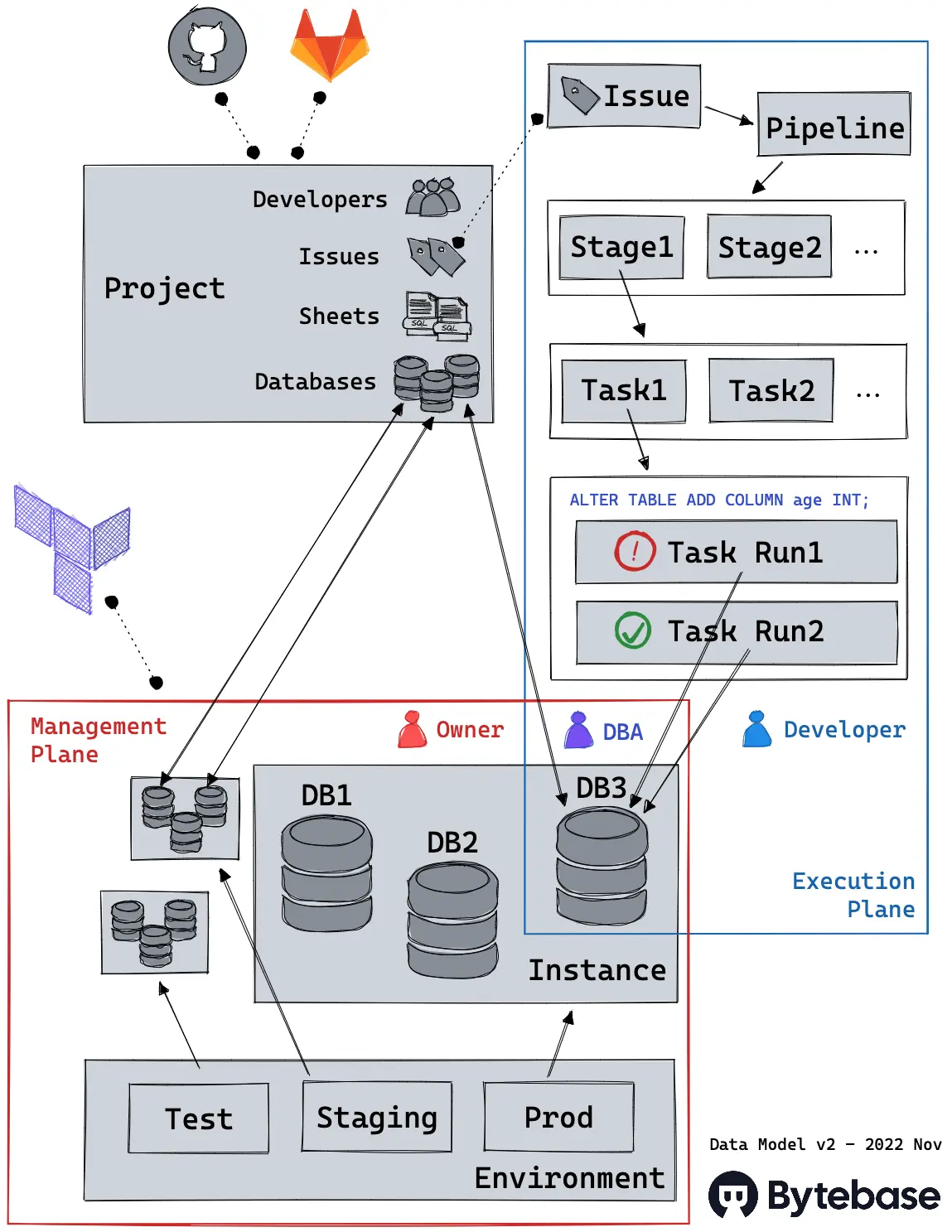

Internally, the issue progression is represented by a Pipeline. A Pipeline contains multiple Stages, each usually corresponds to an Environment. A Stage contains multiple Tasks dealing with a specific database operation such as altering table. A single Task can run multiple times (e.g. failed first and then retry). Each run is represented by a Task Run.

Sheet#

Sheet is the entity where users store, run and share the SQL scripts. A paritcular sheet belongs to a project and may or may not attach a database context. Users interacts with the Sheet from SQL Editor.
