SCIM

SCIM (System for Cross-domain Identity Management) is a standard for provisioning and deprovisioning users and groups in an organization.

Bytebase implements SCIM 2.0 and provides built-in support for Entra ID (Azure AD).

IdP	User	Group	Role	Interval
Entra ID (Azure AD)	Sync name and email	Sync group email and membership	❌	40 minutes

Prerequisites#

• You must be the Workspace Admin to configure SCIM.
• Configure External URL.

Entra ID#

📕 Tutorial - Managing user account provisioning for enterprise apps in the Microsoft Entra admin center

Create enterprise application#

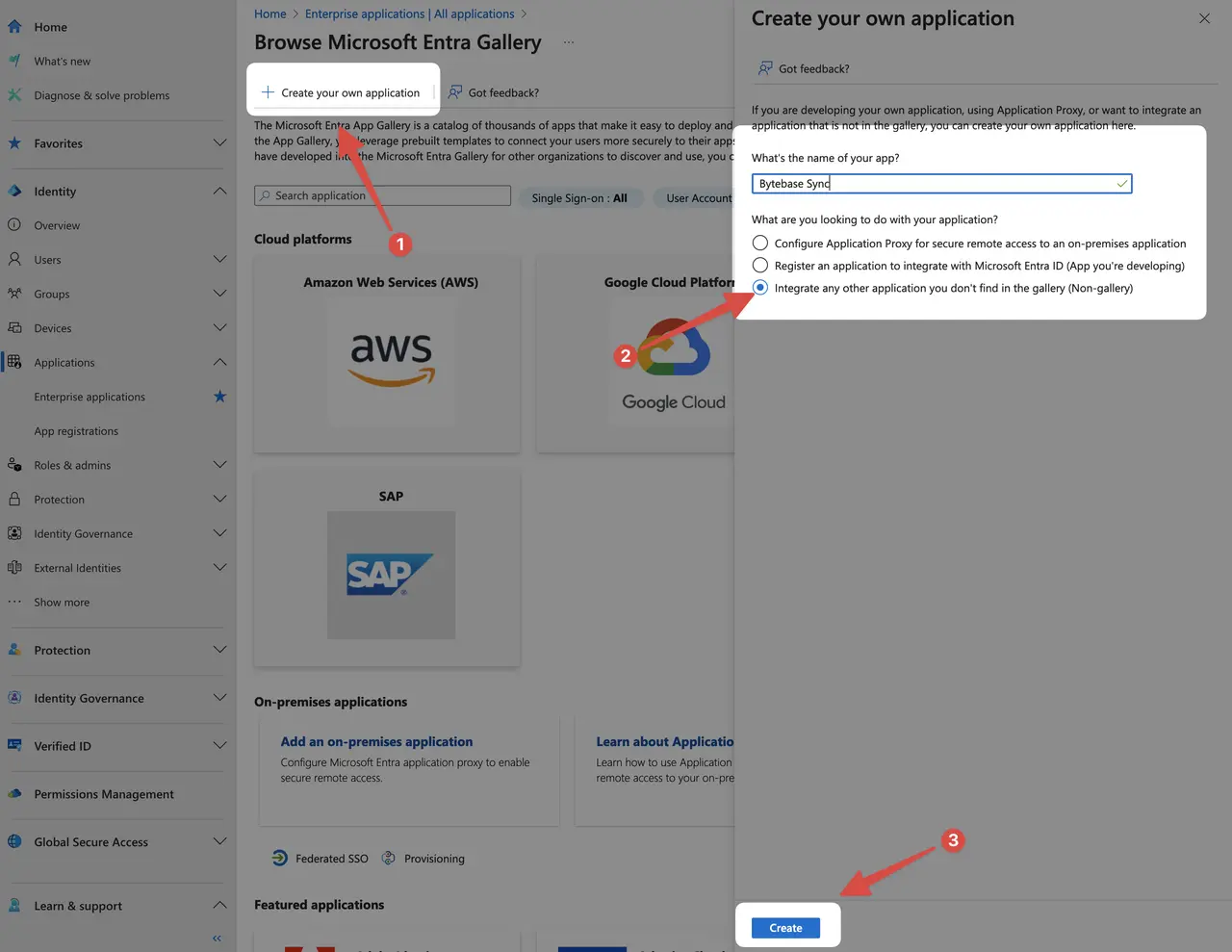

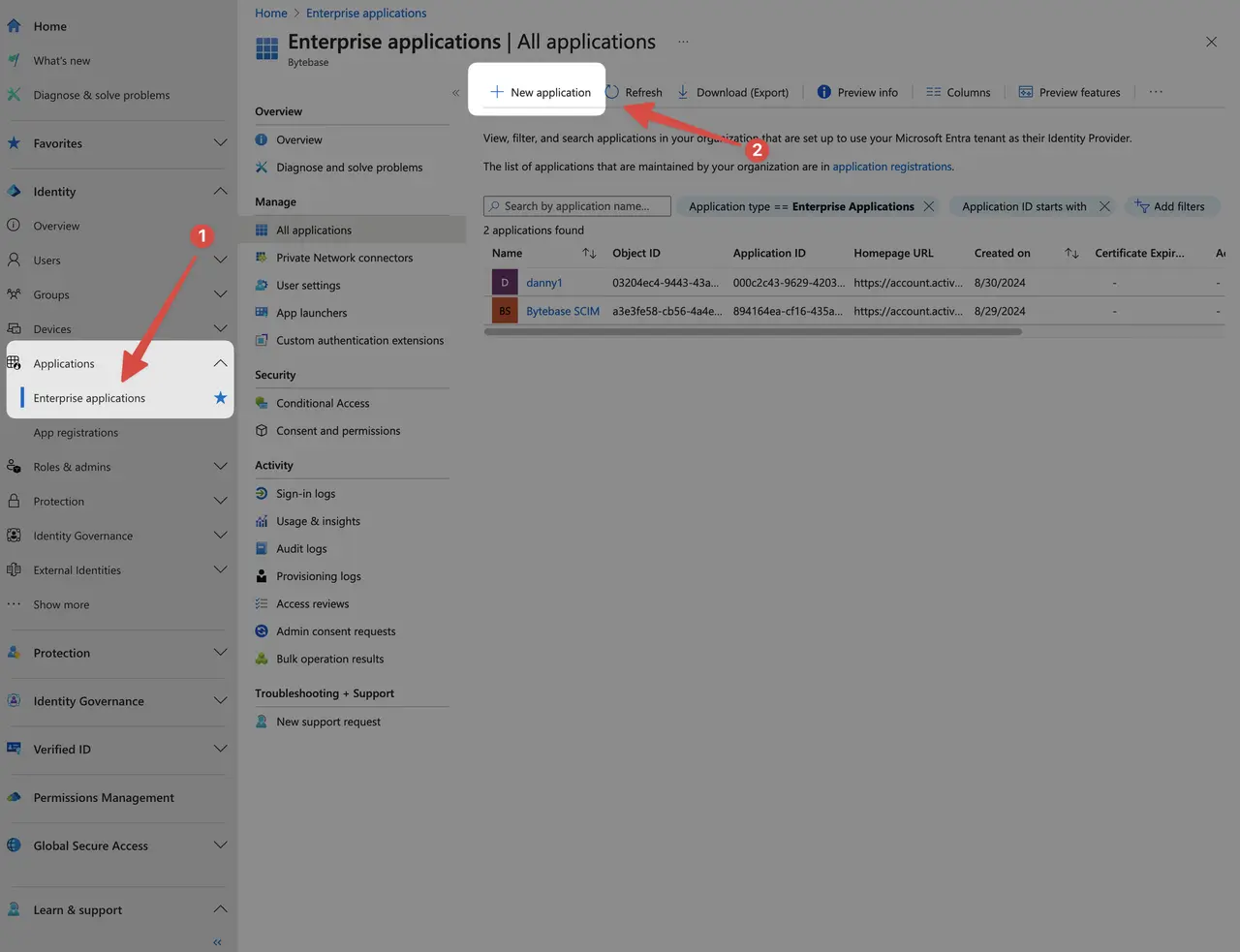

Sign in to the Entra ID Admin Center Dashboard. Select Enterprise applications and click New application.

Select Create your own application. Give your application a descriptive name, and select Integrate any other application you don’t find in the gallery (Non-gallery) option, then click Create.

Create provision#

Go to the application detail page. Select Provision User Accounts.

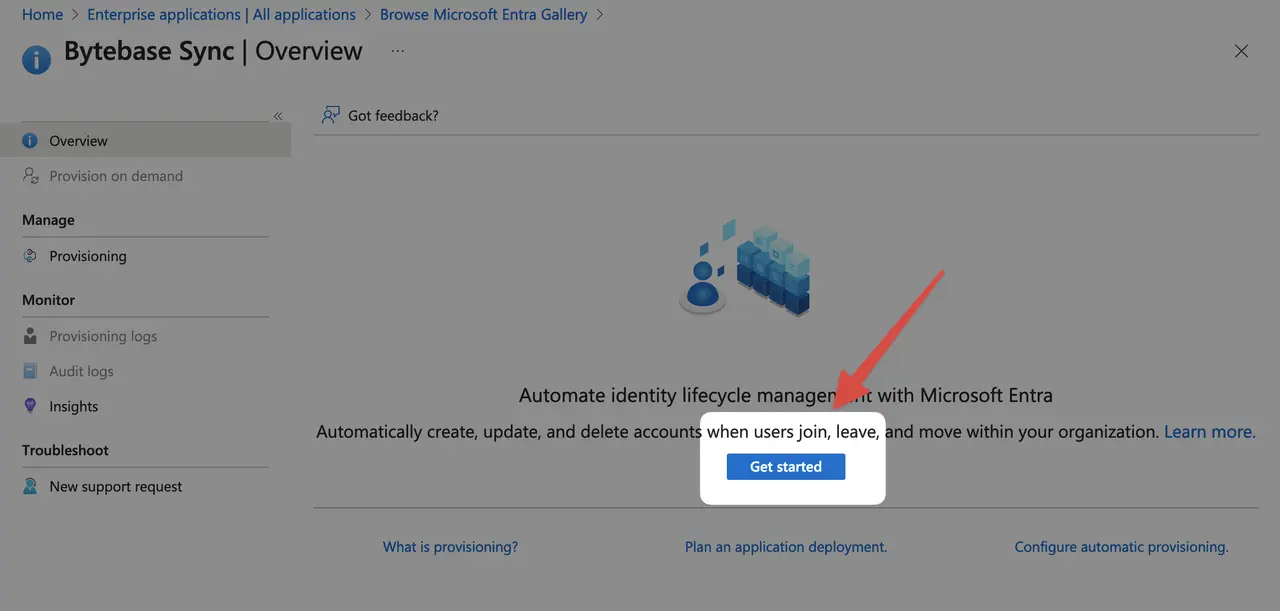

Click Get Started button.

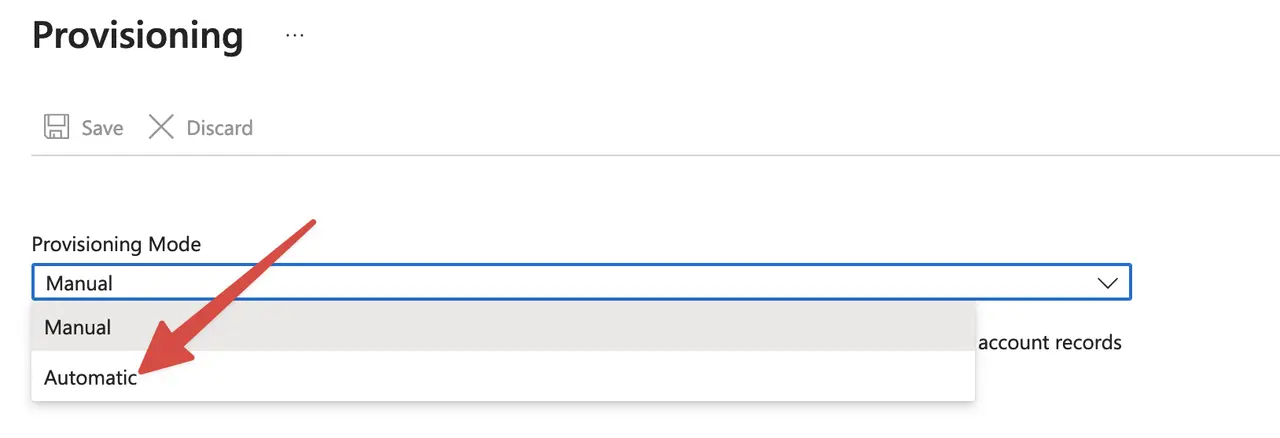

Change Provisioning Mode to Automatic.

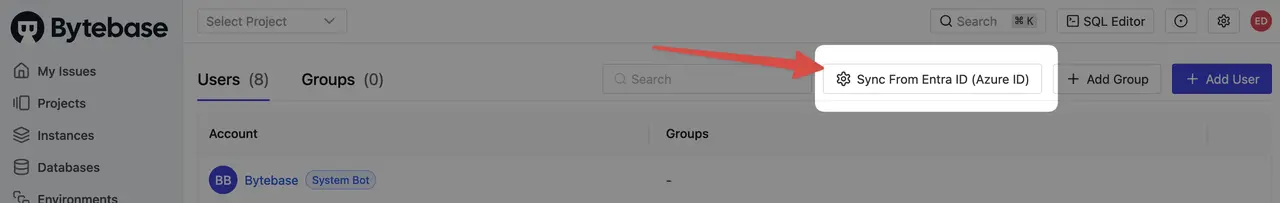

Go to your Bytebase console, navigate to Security & Policy -> Users & Groups page. Click Sync From Entra ID (Azure AD).

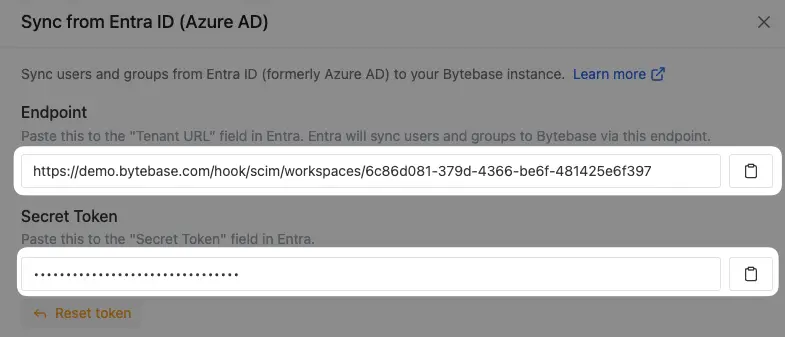

Copy the Endpoint and Secret Token.

Bytebase endpoint implements SCIM protocol, please make sure you have configured External URL and it's network accessible from Entra.

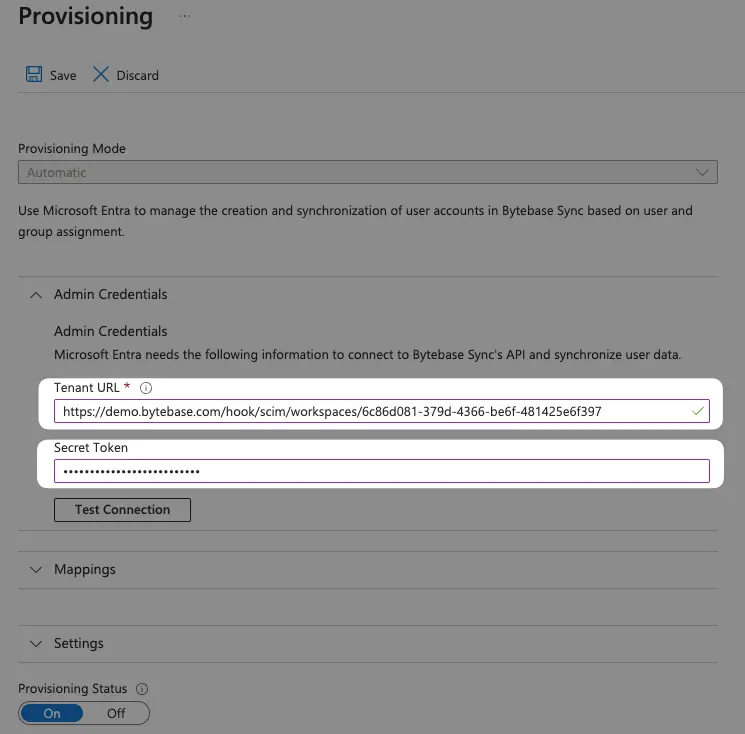

Go back to Entra console, paste the Endpoint and Secret Token above to Tenant URL and Secret Token respectively. Click Test Connection and save upon success.

Edit attribute mapping#

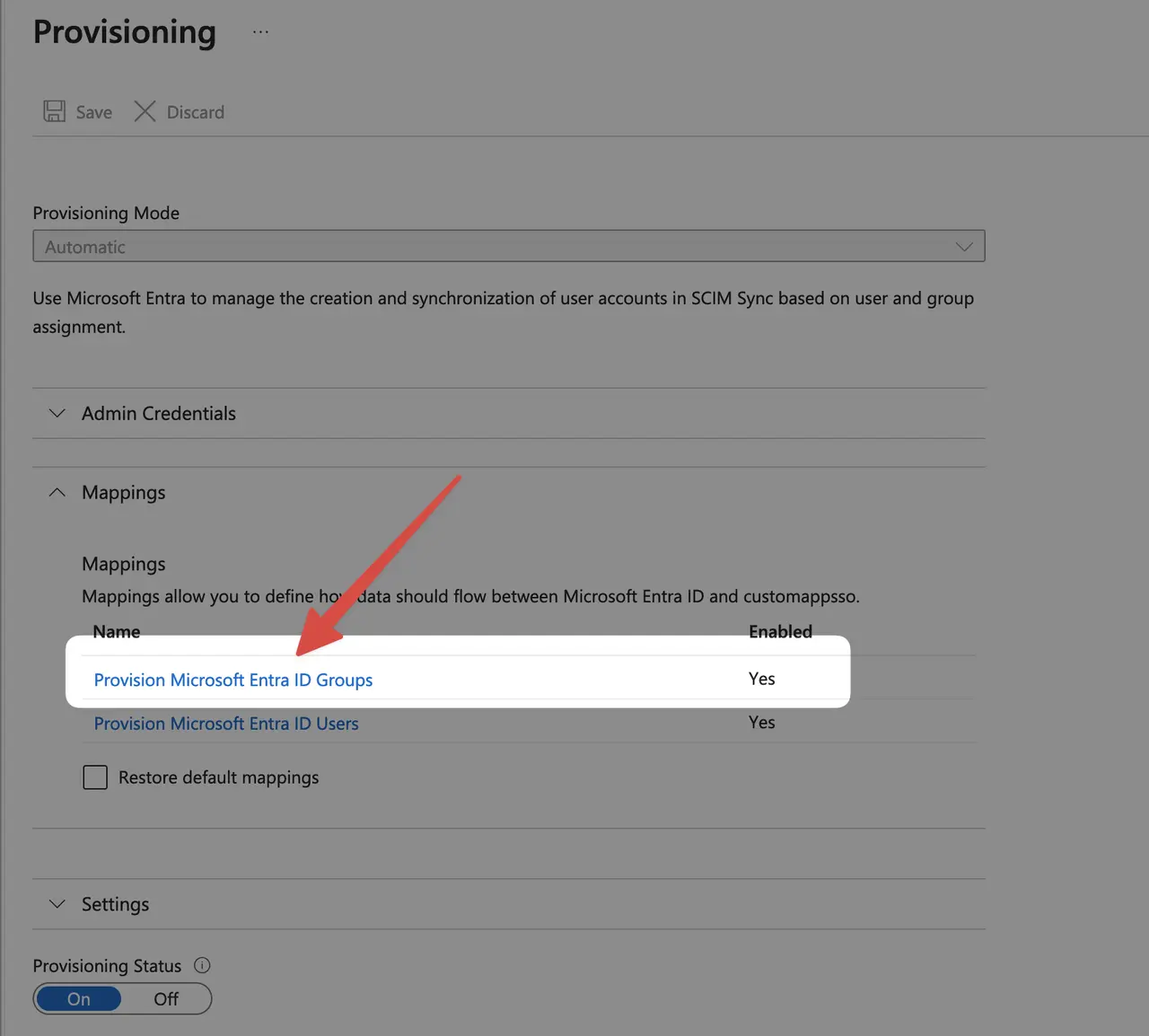

Continue the provision, click Mappings and click Provision Microsoft Entra ID Groups.

Bytebase relies on email to uniquely identify an user. Thus you need to disable the displayName mapping and only enable the id mapping and use mail as the source attribute.

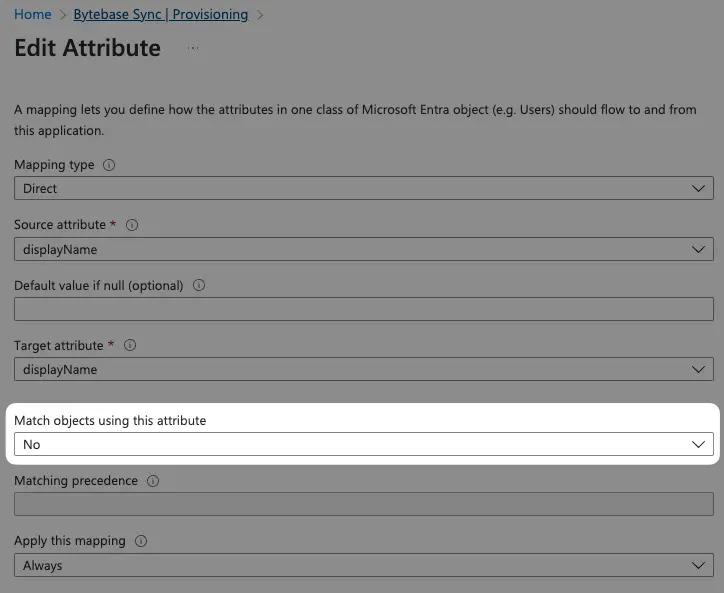

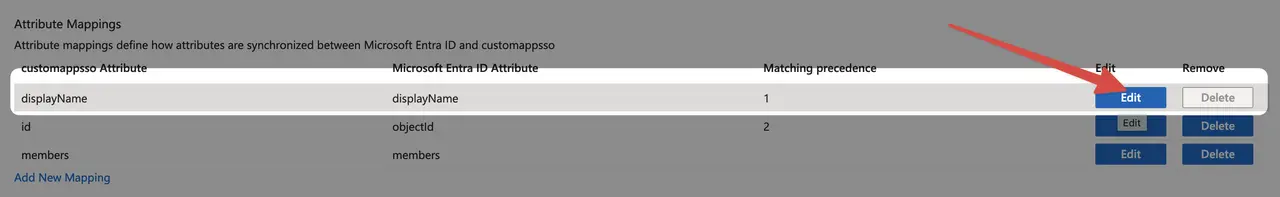

Click Edit button for the displayName row.

Change Match objects using this attribute to No.

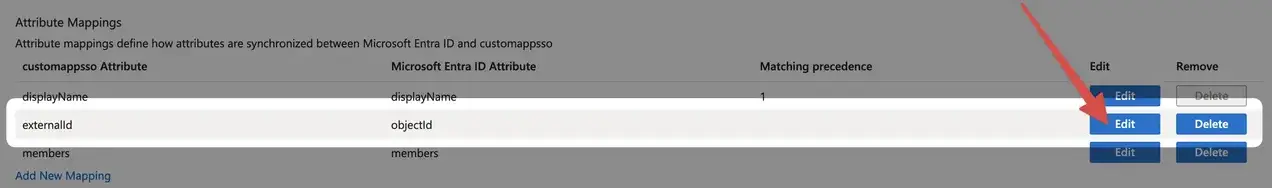

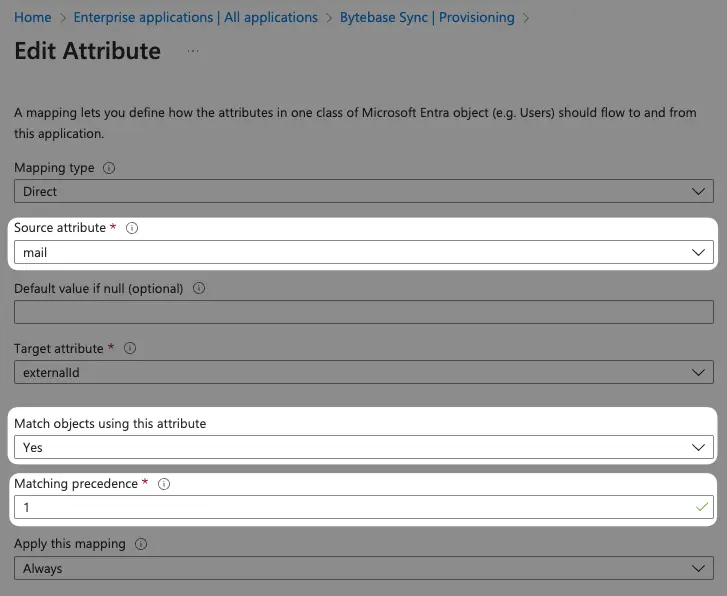

Click Edit button for the externalId row.

• Change Source attribute to mail.
• Change Match objects using this attribute to Yes.
• Set Matching precedence to 1.

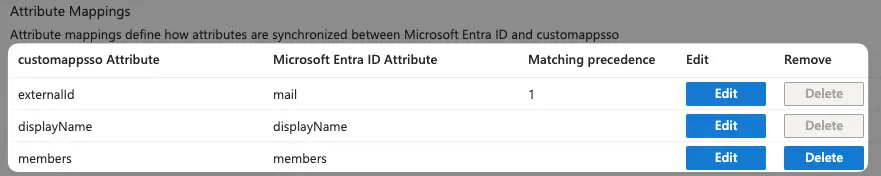

The final mappings look like this.

Assign users and groups#

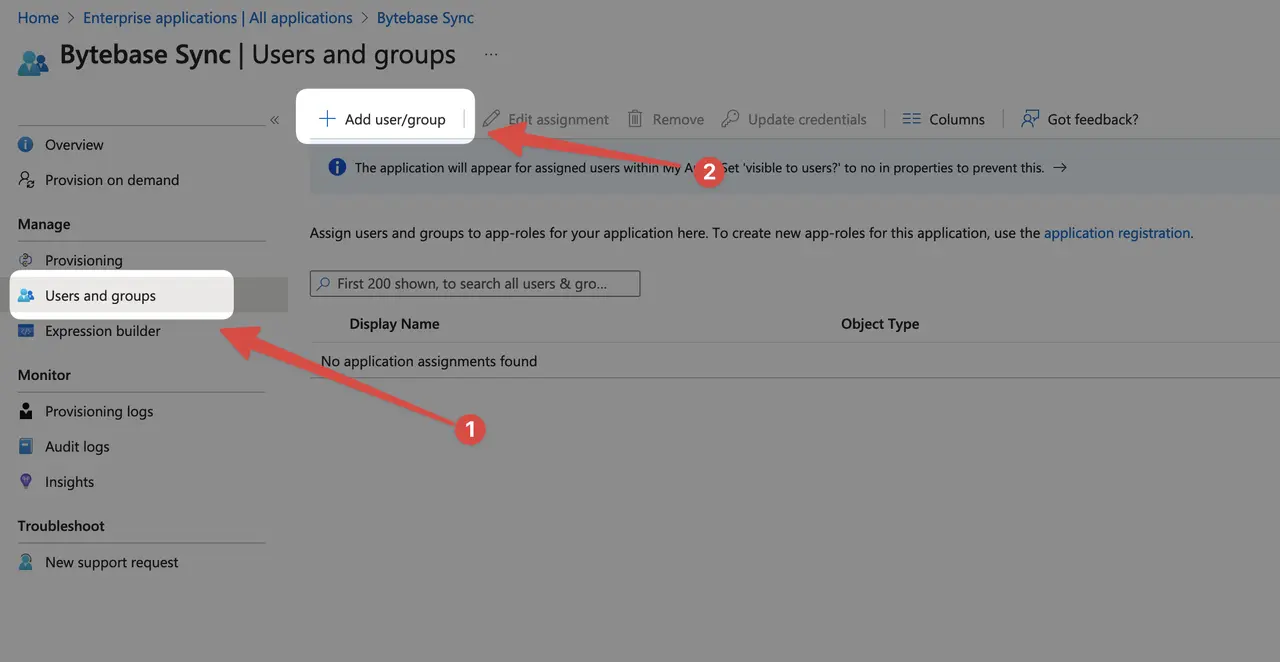

In order for your users and groups to be synced to Bytebase, you will need to assign them to your Entra SCIM application. Select Users and groups and click Add user/group.

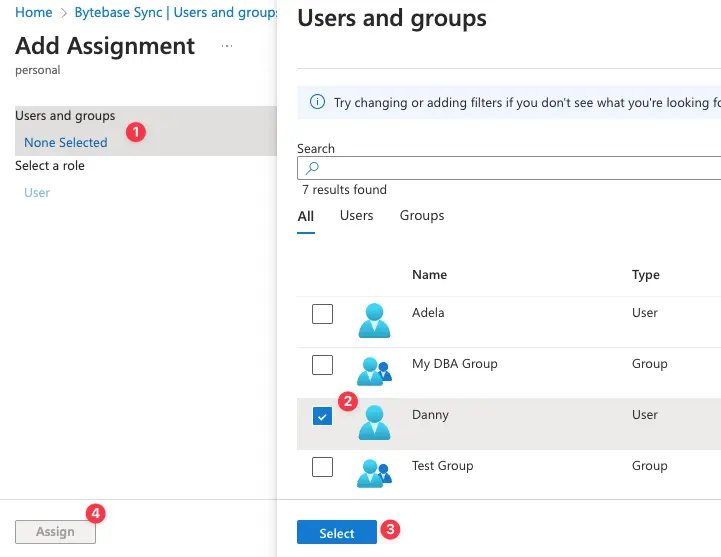

Click None selected under the Users and Groups. Select the users and groups that you want to add to the SCIM application, and click Select and Assign.

Turn on provisioning#

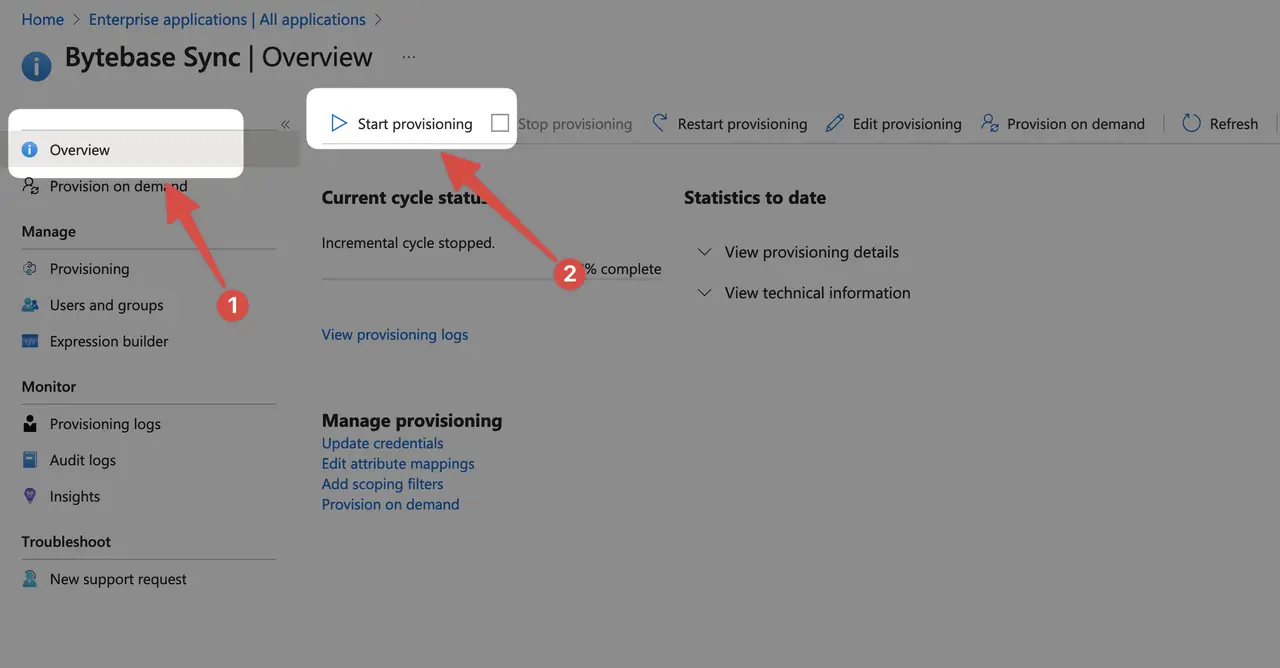

On the application overview page, click Start provisioning.

Afterwards, Entra will sync the users and groups to Bytebase periodically.
